Production process
1. Start from part design analysis.
2. Mold design drawing and DFM report available so you can see how is the mold going to be before mold making.
3. If product is complex,moldflow report will be present as well.
4. In house mold making shop ensure you mold quality under well control.
5. Normally it takes 20-40 days to make mold,precise time depends on part design.
Plastic moulding
1). Precision:0.0001mm
2). Competitive price.
3). Continuance service and support.
4). Customer design and R&D program coordination.
5). ISO standard
6). Application expertise.
7). Quality,reliability and long product life.
| TECHNICAL SPECIFICATIONS |
| Type of mould | Injection mould | Small,medium,large mold |
| Mold Material | S136, P20, 718H , 2738 , NAK80 ,1.2311 etc |
| Nr of Cavities | 1+1,1+2+1,2+2,4+4,Single or mutilcativies |
| Cycle time | 10-30seconds |
| Injection machine | 90-1000ton |
| Life span of mold | 300k-1000k |
| Shrinkage | According to material |
| Product Material | PE , PP, HDPE , PPR , PVC , PP , PS , PET , ABS , PC , etc |
| Injection Type | Hot Runner | QTY of Drops |
| | Cold Runner | Hot sprue,Sequential Injection |
| Gate Point | Edge gate, Pin point gate, Sub gates, Fan gate, bayer |
| Ejection | Round Ejector Pin |
| Slider | Outer, inner slider, lifter |
| Surface finish | Tech polish, High gloss, Texture,VDI 3400 |
| Mould hot treatment | Tempering , Quending , Nitriding |
| Main Processing Equipment | Sodick, Seiki, CNC , high speed carve , EDM ,wire cut , drill |
Competitive Advantage:
1. We keep long term cooperation with some world Top Brand on electronic product area, such Epson,
Canon and Sony.
2. We have successfully gained the quality certificate of ISO 9001 and IGS.
3. We can design and manufacture the mould in different specification and standard, such as DME,HASCO
and DAIDO.
4. The factory is well equiped with the most advanced testing instrument, it is effective to ensure the precision
of the mould.
5. Strict quality control；
6. Good After-sale service；
7. On time delivery
FAQ
1: We will provide some free spare parts along with the mould.
2: If there is something wrong with the mould we will try our best to revise until meet your satisfaction.
3: If there are some defects of the products, we will re-work or re-produce with free and have the quality control and send you on our own cost.
Other products
Product Tags:
|
|

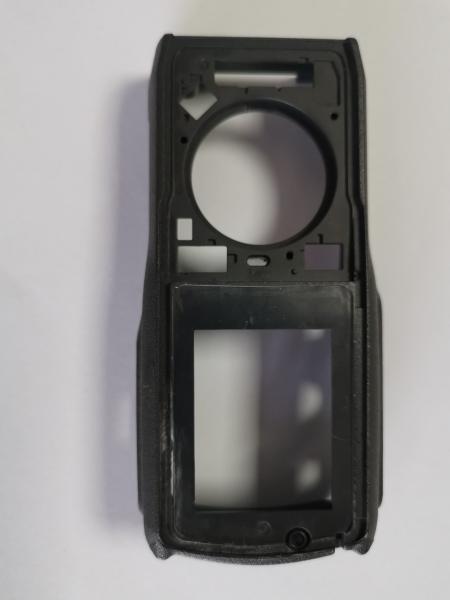

Front Shell ±0.0001mm S136 Mobile Phone Case Mold Images
|
