Wear Resistant ±0.001mm H13 Micro Injection Molding

Brand Name : GT

Model Number : Injection Mold Parts

Certification : ISO 9001 , IGS

Place of Origin : Dongguan China

MOQ : 1 mold

Price : Negotiate

Payment Terms : T/T, L/C, Western Union

Supply Ability : 65 molds / month

Delivery Time : 20 days after 2D 3D confirmed

Packaging Details : Woodencase for packaging mold & Carton Box for packaging products

Mold Type : Injection Mold Parts

Runner : Cold / Hot

Mould Life : 50K-3000K Shots

Plastic Material : PP, PC , PS , PE

Mould Material : H13, NAK80, S136, SKD61

Mould base : Futaba , Lkm , Hasco , Dme

Cavity : Single Mould

Processing Accuracy : 0.002-0.005mm

Contact Now

Used:

Automotive Connector Mold
Precision Connector Mold
Injection Products
Precision Powder Metallurgy Mold
Powder Injection
Die-Casting Mold

Specifications:

1. Quote competitive price according customer detail requirement

2. Sign agreement.

3.Customer T/T deposit to us to design mould

4.Send mould drawing to customer for confirmation

5.Mould design confirmed and start to make mould.

6.Make mould trial during tooling time(which we get agreement with customer).

7.Seed mould trial sample to customer for inspection.Or customer come to our factory to inspect mould

personally.

8.Customer T/T balance to us after mould confirmed.

9.Deliver mould after get balance.

Tolerance

Accuracy of grinding: 0.001 mm;
Accuracy of EDM: 0.002 mm;
Accuracy of Wire-cutting: 0.002mm;
Accuracy of CNC: 0.002mm
In short, the requirment of tolerance as customer's demand.

Product Name	Tolerance Control Down To 0.001mm Precision Mold Parts / Mold Inserts
Material	DAC/DHA-W/W302/DAC55/DH31-EX/NIKKA30/P20/H13/DAC-S/DAC-M/SKD11/SLD-M/DAC10 etc.
Size	2126129mm, customized
Weight	≤200KG
Design	1.As per the customer’s drawings 2.As per the customer’s samples
Process	Painting,Powder Coating,Polishing, Electroplating, Shoot blas
Surface Treatment	Plating,chromate treatment,nitriding,destressing,Black dyeetc.
Software/ File type	Pro/E, Auto CAD, CAXA UG,Cimatron CAD/CAM/CAE etc.
OEM & ODM	Available
Tolerance	±0.005mm
Certificate	ISO9001, Patent

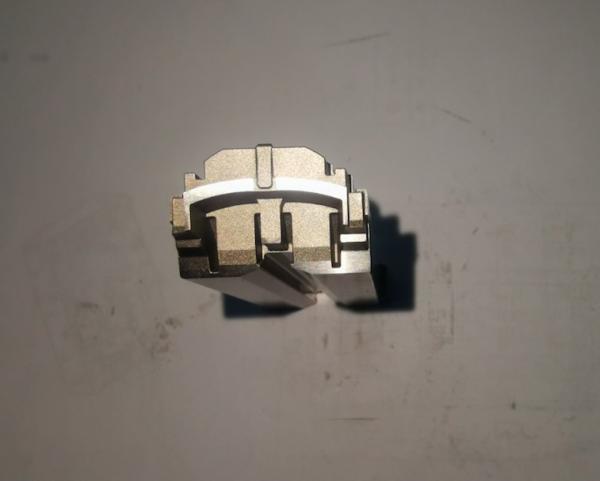

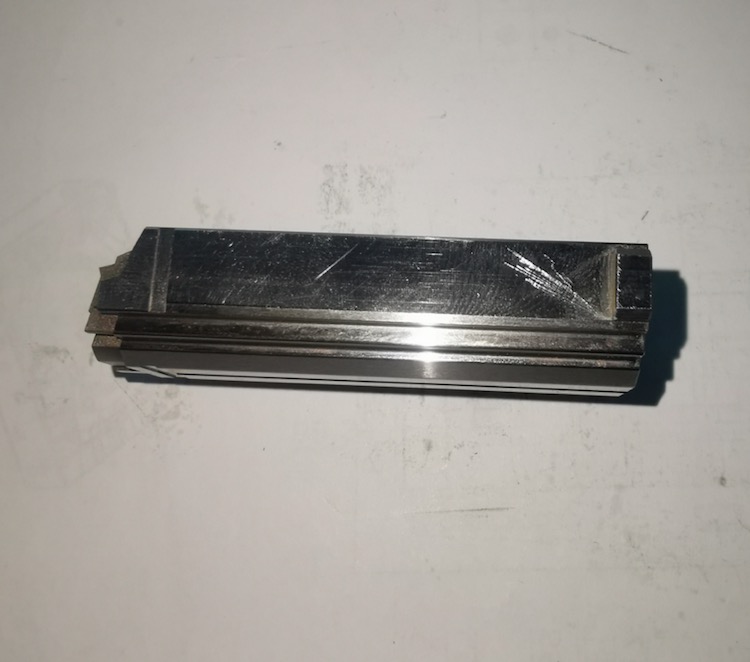

Wear Resistant ±0.001mm H13 Micro Injection Molding
